Build Access Roads That Outlast the Line—Without Timber Mat Costs or Restoration Bills
Permanent and temporary ROW access roads, structure pads, and
crane paths that support heavy equipment, protect the corridor,
and eliminate mat rental cycles.
ROW access roads
Structure pads
Crane paths
Laydown & staging yards
Slope & erosion control
What Transmission Project Teams Are Saying
Transmission ROW Challenges:
What Eats Schedules and Budgets
Your access fails because the terrain is unforgiving, the loads are
extreme, and the corridor goes everywhere.
Heavy equipment travels miles of unprepared ground to reach every structure.
Bucket trucks, digger derricks, cranes, and material haulers need reliable access to every tower or pole location. A single soft spot on a 10-mile ROW shuts down the entire string.
Structure erection demands stable crane pads at every location.
Setting lattice towers and steel poles requires crane outriggers on firm, level ground. Structure pads need to extend at least 15 meters beyond the outermost foundation point—and every pad has to work the first time, because repositioning a 200-ton crane on soft ground isn't an option.
Timber mat rental costs compound across long corridors.
Timber mats run $15-$50+ per mat per day on rental, and a transmission project can require thousands of mats across months of construction. Add mobilization, placement, pickup, inspection, and damage charges—mat programs routinely exceed $100K-$300K+ on major line builds.
Environmental permitting drives access decisions.
ROW corridors cross wetlands, streams, agricultural land, and environmentally sensitive areas. Impermeable surfaces trigger additional permits. Timber mats compact soil and require post-construction restoration. Permeable solutions that minimize environmental impact simplify permitting and reduce restoration scope.
Construction windows are tight and weather-dependent.
Transmission line construction is sequential—foundations, structure erection, wire stringing—and each phase needs access to different locations along the corridor. When access roads fail in wet weather, the entire sequence stalls.
O&M crews need access for 50+ years after construction.
The line is designed to operate for decades. Routine maintenance, emergency storm response, vegetation management, and equipment replacement all require reliable access to every structure—long after construction crews leave.
Where BaseCore Fits on Transmission Projects

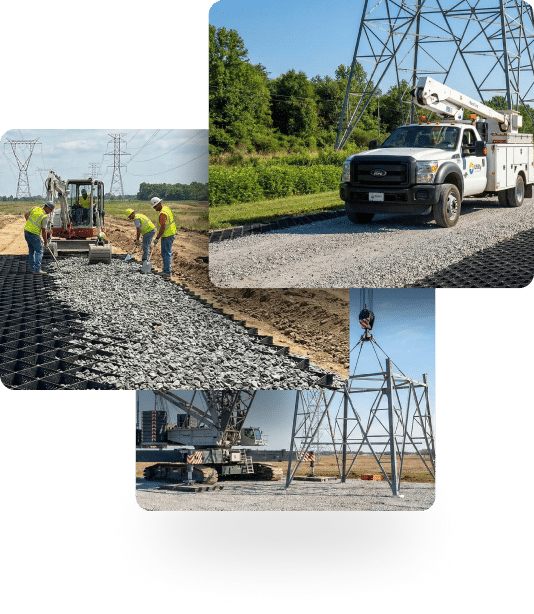

BaseCore geocells lock aggregate in place—creating stabilized, permeable access roads and work pads that handle heavy construction traffic, protect environmentally sensitive corridors, and remain in service for decades of O&M.
One system. Every structure. Every phase.
- ROW access roads — Stabilized routes that handle bucket trucks, digger derricks, material haulers, and concrete trucks through every weather condition
- Structure pads — Level, compacted platforms for crane outriggers during tower erection and pole setting, extending 15+ meters beyond foundations
- Crane paths — Continuous stabilized surfaces for crawler cranes moving between structure locations
- Laydown and staging yards — Material storage areas for steel, conductor reels, insulators, and hardware
- Wire pull and tension sites — Stabilized work areas for stringing equipment, tensioners, and reel stands
- Stream and wetland crossings — Permeable, low-impact crossings that reduce environmental disturbance compared to timber mat bridges
- Permanent maintenance access — All-weather roads that support bucket trucks, line trucks, and emergency response vehicles for the life of the line
- Vegetation management access — Reliable routes for tree crews and mowing equipment along the corridor
- Emergency storm response — Access that works immediately after severe weather events—no waiting for conditions to dry
- Structure replacement access — Roads and pads ready to support crane operations decades after original construction
- Patrol routes — Regular inspection access for line crews and drone launch/recovery areas
What Your Transmission Project Looks Like with BaseCore
Before
- Timber mat programs running $100K-$300K+ in rental and logistics costs
- Mat placement and pickup adding weeks to the construction schedule
- Access roads that disappear after construction—leaving nothing for O&M
- Soft spots shutting down crane moves and stalling structure erection
- Environmental restoration bills after mat removal on sensitive corridors
- Wet weather delays compounding across the entire line sequence
After
- One-time installation that eliminates ongoing mat rental costs — Access roads that cost less than a full mat program and stay permanently
- Roads built once for construction and O&M — No second mobilization, no rebuild for maintenance access
- All-weather access to every structure — Heavy equipment moves on schedule regardless of ground conditions
- Permeable surfaces that simplify environmental permitting — Reduced disturbance on wetland buffers and sensitive areas
- O&M access for 50+ years — Utility inherits permanent infrastructure, not a restoration obligation
- Wire pulls, crane moves, and stringing on schedule — No weather delays, no waiting for ground to firm up
Products for Transmission ROW Applications
BaseCore HD
Best for: Structure pads, crane paths, heavy haul access roads, laydown yards, high-traffic construction corridors
- Smaller cell aperture (180mm x 218mm) for maximum confinement
- Double-welded seams—no single-weld weak points
- Virgin HDPE—no recycled material
- 4-8" cell depths available
BaseCore Geocell
Best for: Lighter-duty O&M access roads, vegetation management routes, slope stabilization, drainage channels, patrol roads
- Larger cell aperture (287mm x 320mm)
- General reinforcement applications
- 2-6" cell depths available
Quick Selector
| Application | Typical Loads | Subgrade Risk | Recommended Product | Cell Depth |
|---|---|---|---|---|
| ROW access roads (construction) | Bucket trucks, concrete trucks, material haulers | Variable | BaseCore HD | 4-6" |
| Structure pads / crane staging | Cranes up to 200+ tons, outrigger point loads | High | BaseCore HD + BaseGrid | 6-8" |
| Crane paths (crawler routes) | 60,000+ kg crawlers | High | BaseCore HD + BaseGrid | 6-8" |
| Laydown / staging yards | Forklifts, boom trucks, material storage | Moderate | BaseCore HD | 4-6" |
| Wire pull / tension sites | Stringing equipment, tensioners, reel trucks | Moderate | BaseCore HD | 4-6" |
| O&M access roads | Bucket trucks, line trucks, patrol vehicles | Low-Moderate | BaseCore HD or BC | 3-4" |
| Slope stabilization / erosion control | Stormwater conveyance, cut/fill slopes | Erosion risk | BaseCore Geocell | 3-4" |
| Vegetation management routes | Tree crew trucks, mowing equipment | Low | BaseCore Geocell | 3-4" |
BaseCore vs. Timber Mat Programs:
The ROW Access Decision
Timber Mats
- Cost model: Rental — per mat, per day, plus mobilization, placement, pickup, inspection, and damage fees
- Duration: Temporary — removed after construction phase
- O&M value: None — mats leave when construction ends; utility has no permanent access
- Environmental impact: Soil compaction under mats requires post-construction restoration; impermeable surface may trigger additional permitting
- Weather dependency: Mats can shift, sink, or float in saturated conditions; placement requires dry ground
- Schedule impact: Mat placement and pickup add days-to-weeks at each end of construction; damaged mats require replacement mid-project
BaseCore Geocell
- Cost model: One-time purchase and installation — no ongoing rental fees
- Duration: Permanent — 75+ year product life
- O&M value: Construction access becomes permanent O&M infrastructure — utility inherits a road, not a restoration obligation
- Environmental impact: Fully permeable; minimal soil disturbance; often reduces or eliminates wetland buffer variance requirements
- Weather dependency: Trafficable immediately after compaction in any weather; no cure time
- Schedule impact: 10,000+ sq ft per day installation rate; no pickup or restoration phase at end of construction
Get a Section + ROM for
Your Transmission Project
Tell us about your project. We'll send back a recommended section, quantities, and budgetary pricing within 1-2 business days.
Budgetary only. Final design confirmed by your Engineer of Record. We typically respond within 1-2 business days.
Reach Us Directly: 888-511-1553
Frequently Asked Questions
Yes. BaseCore provides the same load support as timber mats—permanently. For projects where the utility needs long-term O&M access (which is most transmission projects), geocell eliminates the mat rental cycle entirely and delivers a permanent road the utility can use for decades.
