Keep Transformer Deliveries On Schedule and Yards Trafficable—Rain or Shine

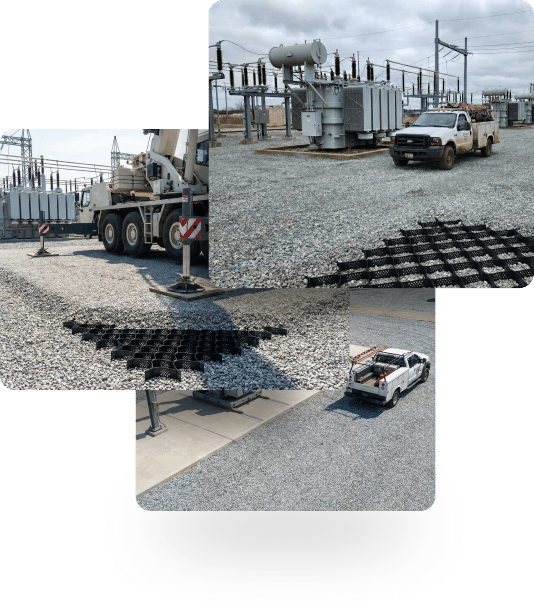

Stabilized switchyard surfaces, access roads, and equipment pads that drain, support extreme loads, and eliminate seasonal regrading.
Switchyard surfaces
Transformer delivery roads
Equipment pads
Maintenance access roads
Security perimeter roads
What Substation Project Teams Are Saying
Substation & Switchyard Civil
Challenges: What Drives Cost Overruns
Your yards and roads fail because the loads are concentrated and
the stakes are high.
Transformer deliveries are the heaviest single loads your site will ever see.
A large power transformer weighs 200,000 to 800,000+ lbs on a multi-axle heavy haul trailer. Access roads must support these loads without deformation—there's no second chance if a trailer bogs down.
Switchyard surfaces take concentrated point loads from heavy equipment.
Transformers, circuit breakers, and disconnect switches sit on concrete pads, but the surrounding yard handles cranes, maintenance vehicles, and boom trucks that need stable footing year-round.
Outage windows drive everything.
Transformer replacements and major maintenance happen during planned outages. If your access road fails or your yard ruts out, you're not just paying for repairs—you're extending an outage that costs the utility thousands per hour.
Switchyards must drain—standing water and high-voltage equipment don't mix.
Ponding water creates safety hazards, accelerates equipment corrosion, and violates code in many jurisdictions. Yard surfaces must shed water while supporting traffic.
Impervious surfaces trigger stormwater requirements.
Paving a switchyard means detention basins, retention ponds, or underground storage. Permeable alternatives reduce or eliminate these requirements—if they can handle the loads.
Perimeter and security roads must work year-round.
Security patrols, emergency response, and vegetation management vehicles need reliable access around the facility perimeter regardless of weather conditions.
Where BaseCore Fits on Substation & Switchyard Projects
BaseCore geocells lock aggregate in place—creating stabilized, permeable surfaces that handle extreme transformer delivery loads and drain without failing.
One system. Every application. Every phase.
- Transformer delivery routes — Heavy haul roads rated for multi-axle trailer loads of 200,000 to 800,000+ lbs
- Crane staging areas — Consistent support for mobile cranes setting transformers and circuit breakers
- Laydown yards — Stabilized staging for incoming equipment, conductor reels, steel structures
- Temporary construction roads — Build once, use through construction and long-term operations
- Gate entrances and transitions — High-stress turning and braking zones that fail first on conventional surfaces
- Permanent switchyard surfaces — All-weather aggregate yards around electrical equipment
- Maintenance access roads — Vehicle access for annual inspections, oil sampling, relay testing
- Security perimeter roads — Patrol routes that stay trafficable in every season
- Equipment pad surrounds — Stable surfaces for crane and boom truck positioning during maintenance
- Drainage channels and swales — Erosion-controlled conveyance for stormwater management
- Expansion areas — Ready to connect new bays and equipment positions without rebuilding existing infrastructure
What Your Substation Project Looks Like with BaseCore
Before
- Access roads that can't handle transformer delivery loads without rework
- Switchyard surfaces that rut under maintenance vehicle traffic
- Standing water around equipment creating safety and corrosion concerns
- Stormwater detention adding cost and consuming limited site footprint
- Every maintenance outage starting with yard repairs
After
- Delivery roads rated for the heaviest loads your site will ever see — 800,000+ lb transformer transports without road failures
- Switchyard surfaces that stay level — Maintenance vehicles, cranes, and boom trucks year-round with no ruts
- Water drains through, not around — Permeable surfaces eliminate ponding near energized equipment
- Stormwater managed on-site — Often reduces or eliminates detention basin requirements
- Maintenance crews focus on equipment, not yard conditions — Zero regrading, zero seasonal repairs
Products for Substation & Switchyard Applications
BaseCore HD
Best for: Transformer delivery routes, crane staging, switchyard surfaces, high-traffic maintenance roads
- Smaller cell aperture (180mm x 218mm) for maximum confinement
- Double-welded seams—no single-weld weak points
- Virgin HDPE—no recycled material
- 4-8" cell depths available
BaseCore Geocell
Best for: Lighter-duty perimeter roads, slopes, drainage channels, shoulder areas
- Larger cell aperture (287mm x 320mm)
- General reinforcement applications
- 2-6" cell depths available
Quick Selector
| Application | Typical Loads | Subgrade Risk | Recommended Product | Cell Depth |
|---|---|---|---|---|
| Transformer delivery routes | 200,000-800,000+ lbs | High | BaseCore HD + BaseGrid | 6-8" |
| Crane staging areas | Up to 60,000 kg | High | BaseCore HD + BaseGrid | 6-8" |
| Switchyard surfaces | Maintenance vehicles, boom trucks | Moderate-High | BaseCore HD | 4-6" |
| Maintenance access roads | Light/medium vehicles | Low-Moderate | BaseCore HD or BC | 3-4" |
| Security perimeter roads | Patrol vehicles | Low | BaseCore HD or BC | 3-4" |
| Drainage channels/swales | Water conveyance | Erosion risk | BaseCore Geocell | 3-4" |
| Equipment pad surrounds | Crane outriggers, service trucks | High | BaseCore HD | 4-6" |
Get a Section + ROM for
Your Transmission Project
Tell us about your project. We'll send back a recommended section, quantities, and budgetary pricing within 1-2 business days.
Budgetary only. Final design confirmed by your Engineer of Record. We typically respond within 1-2 business days.
Reach Us Directly: 888-511-1553
Frequently Asked Questions
Yes. BaseCore HD with 6-8" cell depths and BaseGrid high-strength woven geotextile supports heavy haul transformer transports. Section design accounts for multi-axle configurations and turning movements specific to your delivery route.
