Keep Container Deliveries Moving and Yards Operational—Through Every Weather Cycle
Stabilized laydown yards, access roads, and equipment pads that drain, support heavy loads, and eliminate regrading.
Laydown yards
Container delivery roads
Equipment pads
Fire lanes
Switchyard yards
What BESS Project Teams Are Saying
BESS Civil Challenges: What Delays Projects
Your yards fail because the traffic is relentless and the schedule has no margin.
Container deliveries pound the same routes repeatedly.
Heavy trucks delivering battery containers, inverters, and transformers concentrate loads on the same paths. Conventional gravel ruts out fast.
Laydown yards take abuse from day one.
Heavy trucks delivering battery containers, inverters, and transformers concentrate loads on the same paths. Conventional gravel ruts out fast.
NTP-to-COD pressure leaves no room for rework.
When your yard fails mid-construction, you're not just paying for repairs—you're losing schedule. And schedule is everything.
Fire access requirements demand year-round trafficability.
Fire lanes can't rut out. Emergency access must be reliable regardless of weather or season.
Stormwater constraints add cost and complexity.
Impermeable surfaces trigger detention requirements. Permeable alternatives that actually hold up under heavy traffic are hard to find.
Sites keep expanding.
Phase 1 becomes Phase 2. Your civil infrastructure needs to grow without rebuilding what you already installed.
Where BaseCore Fits on BESS Projects

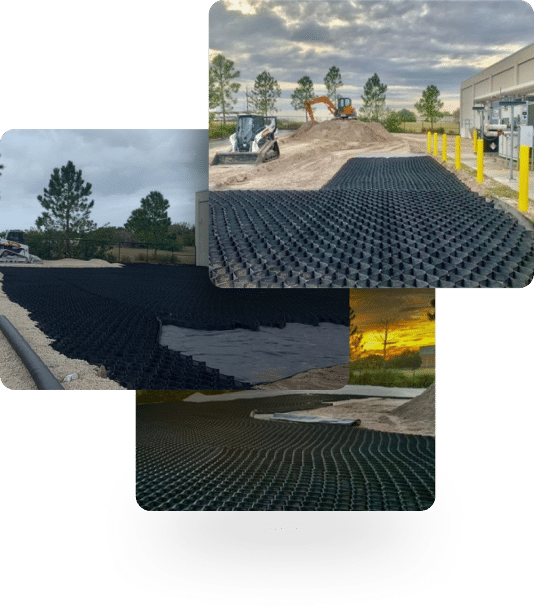

BaseCore geocells lock aggregate in place—creating stabilized, permeable surfaces that handle heavy container traffic and drain without failing.
One system. Every phase. Every application.
Laydown yards — Stabilized staging for containers, inverters, transformers, and balance-of-plant equipment
- Container delivery routes — Access roads that handle repeated heavy truck traffic without rutting
- Crane pads — Support for cranes setting containers and major equipment
- Temporary staging areas — Work surfaces that can be expanded or repurposed as construction progresses
- Gate entrances and transitions — High-traffic points that fail first on conventional surfaces
- Permanent access roads — O&M vehicle access that stays trafficable year-round
- Fire lanes — Emergency access that meets code requirements in all weather
- Equipment pads — Stable surfaces around inverters, transformers, and electrical infrastructure
- Switchyard and substation yards — Aggregate surfaces for electrical equipment area
- Expansion areas — Ready to connect new phases without rebuilding existing infrastructure
What Your BESS Project Looks Like with BaseCore:
Before
- Laydown yards that rut after every delivery cycle
- Access roads that need regrading after rain
- Fire lanes that become impassable in wet weather
- Stormwater detention adding cost and footprint
- Phase 2 requiring complete rebuild of Phase 1 civil
After
- Yards that stay solid — 200+ container deliveries without surface failures
- Access roads that drain and hold up — Heavy trucks year-round, no maintenance
- Fire lanes that work when you need them — All-weather emergency access
- Stormwater that infiltrates on-site — Often eliminates detention requirements
- Phases that connect seamlessly — Expand without rebuilding
Products for BESS Applications
BaseCore HD
Best for: Laydown yards, container
delivery routes, crane pads, high-traffic areas
- Smaller cell aperture (180mm x 218mm) for maximum confinement
- Double-welded seams—no single-weld weak points
- Virgin HDPE—no recycled material
- 4-8" cell depths available
BaseCore Geocell
Best for: Lighter-duty access roads, fire lanes, slopes, drainage channels
- Larger cell aperture (287mm x 320mm)
- General reinforcement applications
- 2-6" cell depths available
Quick Selector
| Application | Typical Loads | Subgrade Risk | Recommended Product | Cell Depth |
|---|---|---|---|---|
| Laydown yards | Container trucks, forklifts | High | BaseCore HD | 4-6" |
| Container delivery routes | Heavy haul | Variable | BaseCore HD | 4-6" |
| Crane pads | Up to 60,000 kg | High | BaseCore HD + BaseGrid | 6-8" |
| O&M access roads | Light/medium vehicles | Low-moderate | BaseCore HD or BC | 3-4" |
| Fire lanes | Emergency vehicles | Moderate | BaseCore HD | 4-6" |
| Equipment pad surrounds | Foot traffic, light vehicles | Low | BaseCore Geocell | 3-4" |
Get a Section + ROM for
Your BESS Project
Tell us about your project. We'll send back a recommended section, quantities, and budgetary pricing within 1-2 business days.
Budgetary only. Final design confirmed by your Engineer of Record. We typically respond within 1-2 business days.
Reach Us Directly: 888-511-1553
Frequently Asked Questions
Yes. BaseCore HD with 4-6" cell depths handles heavy truck traffic including container delivery vehicles. Yards see 200+ deliveries without surface degradation.
