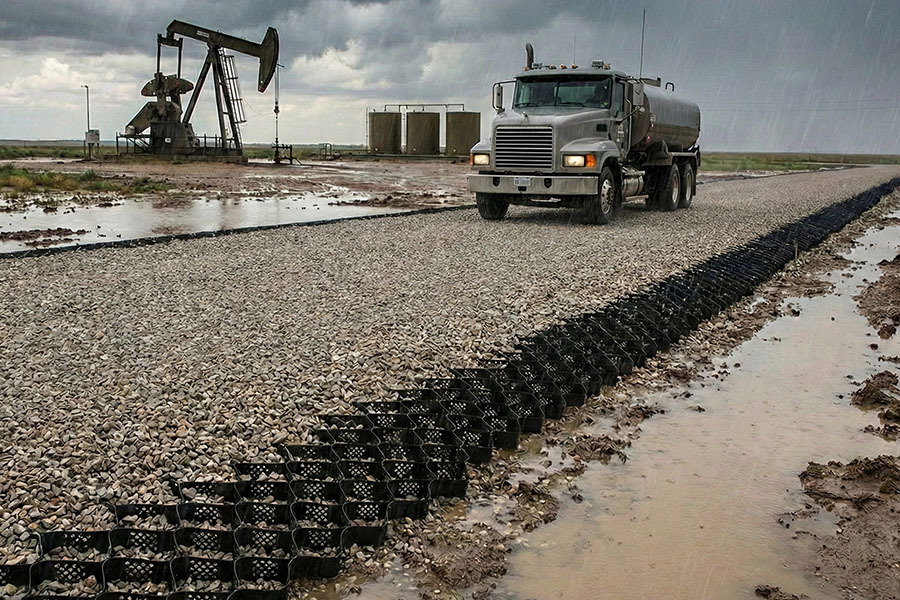

Every oil and gas operation faces the same fundamental infrastructure challenge: heavy equipment must reach remote locations across terrain that was never designed to support 80,000-pound loads. Whether crossing coastal marshlands, traversing permafrost, spanning deltaic sediments, or ascending steep mountain grades, access road construction determines whether drilling operations proceed on schedule or stall in the mud.

Access roads for oil and gas operations on weak soils require subgrade reinforcement to support heavy equipment loads exceeding 80,000 pounds. Geocell technology provides cellular confinement that increases soil bearing capacity by 2-3 times, reducing required aggregate depth by 40-60% compared to conventional unreinforced base course while enabling rapid installation on low-CBR soils. BaseCore HD™ Geocell delivers this performance through HDPE cellular confinement engineered for H-20 and greater load classifications.

This guide covers the geotechnical engineering principles, load requirements, and construction methodologies that determine access road performance in oil and gas operations. You will learn how to evaluate subgrade conditions, select appropriate stabilization strategies, and specify geocell systems that deliver reliable heavy-haul performance across challenging terrains.

The Engineering Challenge: Why Oil & Gas Access Roads Fail

Access road failures in oil and gas operations rarely result from inadequate surface materials. The failure mechanism originates in the subgrade—the native soil beneath the road structure that must ultimately support every pound of applied load.

Understanding Subgrade Failure Mechanics

When a loaded truck wheel contacts a road surface, that concentrated point load must disperse through the pavement structure into the subgrade below. According to Boussinesq stress distribution theory, vertical stress decreases with depth as the load spreads across an expanding cone of influence. The critical question: does the stress reaching the subgrade exceed that soil’s bearing capacity?

In conventional pavement design, engineers increase aggregate base thickness to spread loads across a wider subgrade area, reducing stress concentration at any single point. This approach works—but requires substantial material depth. A weak subgrade with a California Bearing Ratio (CBR) of 3 might require 18-24 inches of crushed aggregate to adequately support H-20 loading (equivalent to a 32,000-pound axle load).

Oil and gas operations compound this challenge across multiple dimensions:

  • Extreme axle loads: Drilling rigs, completion equipment, and frac sand haulers routinely exceed standard H-20 highway design loads. Crane carriers, coiled tubing units, and heavy transformers impose concentrated loads that conventional aggregate bases cannot distribute without excessive depth.
  • Weak native soils: Drilling targets often lie beneath terrain with inherently poor bearing capacity—coastal marshes with CBR values below 2, permafrost regions where seasonal thaw creates unstable conditions, or clay-dominated formations prone to moisture-induced softening.
  • Remote locations: Aggregate sources may be 50-100 miles from the job site. Every additional inch of required base depth translates to increased trucking costs, extended construction schedules, and greater environmental disturbance from aggregate mining.
  • Schedule pressure: Drilling permits, rig contracts, and completion schedules create intense time pressure. A two-week road construction delay can cascade into millions of dollars in standby costs.

The Cost of Conventional Approaches

Traditional access road construction for heavy industrial loads follows a predictable formula: excavate poor soils, import massive quantities of crushed aggregate, compact in lifts, and hope the road survives long enough to complete operations.

This approach generates predictable problems:

Aggregate volume escalation. A 20-foot-wide access road requiring 20 inches of base course consumes approximately 125 cubic yards of aggregate per 100 linear feet. For a 2-mile lease road, that translates to 13,200 cubic yards of material—roughly 900 truckloads assuming 15-cubic-yard capacity. At $25-40 per cubic yard delivered (depending on haul distance), aggregate cost alone reaches $330,000-530,000 before any installation labor.

Construction timeline expansion. Importing and compacting 13,200 cubic yards of aggregate requires weeks of trucking operations, sequential lift placement, and moisture conditioning for proper compaction. Each delay compounds schedule pressure on downstream drilling operations.

Environmental and permitting complications. Wetland crossings, stream crossings, and environmentally sensitive areas trigger permitting requirements that conventional heavy aggregate fills may not satisfy. Regulatory agencies increasingly require permeable surfaces, minimal soil disturbance, and demonstrated removability for temporary access.

Maintenance burden. Unreinforced aggregate roads under heavy repetitive loading develop rutting, pumping (migration of fines into the base course), and progressive failure. Maintenance becomes a continuous operational cost rather than an occasional repair expense.

How Geocell Technology Solves Access Road Challenges

Geocell technology addresses the fundamental load distribution problem through a different engineering mechanism than simply adding more aggregate depth. Rather than relying solely on granular interlock to spread loads, geocell creates a semi-rigid composite structure that dramatically increases the effective stiffness and load-carrying capacity of the base course layer.

The Three Load-Carrying Mechanisms

BaseCore geocell systems deliver structural performance through three interconnected engineering mechanisms:

Mechanism 1: Cellular Confinement. High-density polyethylene (HDPE) cell walls prevent lateral displacement of infill aggregate under load. When an aggregate particle attempts to move horizontally under wheel pressure, the cell wall provides passive resistance, forcing the particle to stay in place. This confinement creates “apparent cohesion” in materials that otherwise have no cohesive strength—crushed stone behaves like a semi-rigid material rather than a loose granular mass.

The U.S. Army Corps of Engineers documented this phenomenon in field research beginning in the 1970s, demonstrating that geocell confinement increases bearing capacity of sand fills by factors of 2-3 compared to unconfined placement.

Mechanism 2: Beam Action. Interconnected geocell panels distribute point loads laterally across adjacent cells. When a truck wheel loads one section of geocell road, the rigid cell walls transfer a portion of that load horizontally to neighboring cells, spreading the pressure across a wider area before it reaches the subgrade. This beam action effectively increases the load dispersion angle from the typical 30-45 degrees of unreinforced aggregate to 55-65 degrees with geocell reinforcement.

Mechanism 3: Membrane Effect. Under load, the HDPE cell walls develop tensile stresses that redistribute vertical loads through the membrane structure. This tensile capacity adds structural contribution beyond what the infill aggregate alone provides—the geocell becomes an active structural element, not merely a container for aggregate.

BaseCore HD™ Geocell for Heavy-Haul Applications

BaseCore HD™ Geocell is engineered specifically for heavy-duty loading environments including oil and gas access roads, rig pads, crane pads, and heavy equipment staging areas. Key engineering specifications include:

  • Structural coefficient of 0.35: Per AASHTO pavement design methodology, this coefficient allows BaseCore HD to contribute equivalent structural capacity to conventional aggregate at a fraction of the depth. A 6-inch BaseCore HD layer delivers structural equivalence to approximately 10-12 inches of unreinforced crushed aggregate base.
  • H-20 and greater load capacity: At appropriate cell depths (4-6 inches typical), BaseCore HD supports axle loads exceeding AASHTO H-20 classification (32,000-pound single axle, 52,000-pound tandem axle).
  • 75+ year HDPE lifespan: High-density polyethylene construction resists UV degradation, chemical exposure, and fatigue from repetitive loading cycles.
  • Rapid installation: Collapsed geocell panels expand to cover large areas quickly. A two-person crew can deploy 2,000+ square feet per hour, dramatically compressing construction schedules compared to conventional multi-lift aggregate placement.

Quantified Advantages for Oil & Gas Operations

The engineering mechanisms translate to measurable project benefits:

40-60% aggregate reduction. A subgrade with CBR 3 that requires 20 inches of unreinforced aggregate for H-20 loading may require only 8-10 inches total (4-inch geocell + 4-6 inch aggregate infill and cover). For a 2-mile access road, this reduction eliminates 6,600-7,900 cubic yards of aggregate—roughly 450-530 fewer truck trips.

Installation in days, not weeks. Geocell deployment, filling, and compaction proceeds faster than sequential aggregate lifts because the system achieves structural capacity immediately upon compaction rather than requiring multiple lift placements with intermediate compaction.

Performance on soils conventional methods cannot stabilize. CBR values below 3 create insurmountable challenges for unreinforced aggregate roads without extensive subgrade improvement. Geocell systems, combined with appropriate geotextile separation layers, enable road construction on soils that would otherwise require soil replacement, chemical stabilization, or pile-supported structures.

Removability for temporary access. Geocell panels can be excavated, cleaned, and redeployed on subsequent projects. For temporary lease roads serving a single well pad, this removability satisfies regulatory requirements for site restoration while recovering material value for future use.

BaseCore’s engineering team provides free project evaluations for oil and gas access road applications, including geocell depth recommendations based on your site’s CBR data and expected loading. Request a quote at basecore.co/quick-basecore-quote or call 888-511-1553.

Project Implementation: Specification and Installation

Successful geocell road construction requires proper site evaluation, system specification, and installation methodology. The following guidance addresses each phase for oil and gas access road applications.

Phase 1: Site Evaluation and Subgrade Characterization

Subgrade bearing capacity determines geocell depth selection and overall system design. Field evaluation should include:

CBR testing. California Bearing Ratio testing (ASTM D6951 Dynamic Cone Penetrometer or ASTM D1883 laboratory CBR) establishes baseline subgrade strength. For oil and gas access roads, CBR values typically fall into these design categories:

  • CBR 8+: Moderate subgrade—standard geocell depth (3-4 inches) typically adequate
  • CBR 3-8: Weak subgrade—increased geocell depth (4-6 inches) with geotextile separation
  • CBR <3: Very weak subgrade—maximum geocell depth (6-8 inches) with geotextile and possible geogrid reinforcement

Moisture and drainage assessment. Saturated soils exhibit dramatically reduced bearing capacity. Identify seasonal high water table, surface drainage patterns, and potential for water accumulation along the road alignment. Roads crossing wetlands or areas with impeded drainage require additional consideration for long-term performance.

Traffic characterization. Document expected vehicle types, axle loads, and traffic frequency. A lease road serving a single well completion sees different loading than a permanent access road supporting ongoing production operations with daily tanker traffic.

Phase 2: System Specification

Based on site evaluation, specify the complete geocell system including:

Geocell selection. Project Implementation: Specification and Installation is the appropriate selection for H-20 and greater loading typical of oil and gas operations. Standard BaseCore™ Geocell may be adequate for lighter service roads or temporary access routes with restricted traffic.

Cell depth. Select geocell height based on subgrade CBR and design traffic loading:

  • 4-inch cells: CBR 6+ subgrade, moderate traffic volume
  • 6-inch cells: CBR 3-6 subgrade, heavy traffic volume, H-20+ loading
  • 8-inch cells: CBR <3 subgrade, extreme loading, or critical performance requirements

Geotextile separation layer. On weak or saturated subgrades, a nonwoven geotextile beneath the geocell prevents pumping of subgrade fines into the aggregate infill. This separation maintains long-term drainage and prevents progressive bearing capacity loss.

Infill material. Angular crushed aggregate provides optimal performance within geocell confinement. Specify clean, well-graded material meeting AASHTO M147 or state DOT aggregate base requirements. Avoid rounded aggregates or materials with excessive fines (passing #200 sieve).

Phase 3: Installation Methodology

Geocell road construction follows a systematic sequence:

  1. Subgrade preparation. Clear vegetation, remove organic materials, and establish rough grade. Compact native soil to 95% Standard Proctor density where feasible. Correct significant grade irregularities—geocell accommodates minor variations but cannot bridge large voids.
  2. Geotextile placement. Roll out nonwoven geotextile across prepared subgrade with 12-inch minimum overlaps at seams. Secure against wind displacement during geocell deployment.
  3. Geocell deployment. Expand collapsed geocell panels to full extension. Secure adjacent panels using manufacturer-specified connections (typically HDPE or polymer staples through cell walls). Anchor geocell perimeter using stakes at 3-4 foot intervals to prevent lateral shift during filling.
  4. Infill placement. Fill cells with specified aggregate using front-end loader, excavator, or spreader equipment. Overfill cells by approximately 2 inches to account for compaction.
  5. Compaction. Compact aggregate within cells using vibratory plate compactor or smooth drum roller. Achieve 95% Standard Proctor density or 98% Modified Proctor density depending on specification requirements. Verify compaction using nuclear density gauge or sand cone testing.
  6. Surface course (optional). For permanent roads or improved surface conditions, place 2-3 inches of wearing course aggregate over compacted geocell surface. This sacrificial layer protects cell walls from direct tire contact and provides maintenance aggregate for periodic resurfacing.

Design Support from BaseCore

BaseCore’s engineering support team provides project-specific design assistance including:

  • Geocell depth recommendations based on submitted CBR data and traffic requirements
  • System specification guidance for complete material packages
  • Installation technical support and crew training
  • Field consultation for complex projects or challenging site conditions

Contact BaseCore engineering at 888-511-1553 or Geotextile separation layer. On weak or satura for complimentary design consultation.

Industry Questions Answered

What is the minimum road width for oil field access roads?

Minimum road width for oil field access depends on equipment dimensions and two-way traffic requirements. Single-lane access roads with turnouts typically require 14-16 feet of travel surface width. Two-way traffic for heavy equipment requires 24-26 feet minimum. Permit-width loads (oversized drilling equipment, modular buildings) may require 30+ feet at curves and passing areas. BaseCore HD geocell accommodates any width specification—panels connect seamlessly to achieve required road dimensions. The lease roads application page provides additional project examples.

How thick should aggregate be for heavy haul roads?

Required aggregate thickness depends on subgrade CBR and design traffic loading. For unreinforced aggregate over CBR 3 subgrade supporting H-20 loading, conventional design requires 18-24 inches of crushed base. With BaseCore HD geocell reinforcement, total section thickness (geocell + aggregate infill and cover) typically reduces to 8-12 inches for equivalent load capacity. This 40-60% aggregate reduction reflects geocell’s improved load dispersion characteristics documented in U.S. Army Corps of Engineers research on cellular confinement systems.

Can you build temporary roads on wetlands for drilling operations?

Temporary roads across wetlands require permitting under Section 404 of the Clean Water Act, typically through the Army Corps of Engineers. Geocell construction offers advantages for wetland permitting: the system is removable and reusable, enables permeable surface designs, minimizes required fill depth (reducing wetland impact), and demonstrates restoration capability upon project completion. BaseCore case studies document successful temporary road projects in environmentally sensitive areas where geocell’s removability satisfied regulatory restoration requirements.

Conclusion

Access road construction for oil and gas operations demands engineering solutions that address the fundamental geotechnical challenge: supporting extreme loads on soils with inadequate natural bearing capacity. Geocell technology provides that solution through cellular confinement, beam action, and membrane effect mechanisms that dramatically increase aggregate structural contribution.

BaseCore HD™ Geocell delivers H-20 and greater load capacity at 40-60% reduced aggregate depth, compressing construction schedules from weeks to days while enabling construction on soils that conventional methods cannot stabilize economically.

Request a free project evaluation at basecore.co/quick-basecore-quote or contact BaseCore’s engineering team at 888-511-1553 to discuss your access road requirements.

Frequently Asked Questions

What geocell depth do I need for oil field access roads with frac sand haulers?

Frac sand haulers typically impose axle loads in the 40,000-46,000 pound range, exceeding standard H-20 design loads. For CBR 3-6 subgrades, specify 6-inch BaseCore HD geocell with 3-4 inches of aggregate cover. For CBR below 3, increase to 8-inch geocell depth with geotextile separation. BaseCore’s engineering team provides site-specific recommendations based on your CBR data and traffic documentation.

How long does geocell access road construction take compared to conventional aggregate roads?

Geocell road construction typically proceeds 3-5 times faster than conventional multi-lift aggregate placement for equivalent load capacity. A two-person crew deploys 2,000+ square feet of geocell per hour. For a 2-mile lease road, geocell installation and compaction can complete in days rather than the weeks required for sequential 6-inch aggregate lifts with intermediate compaction.

Can BaseCore geocell be recovered and reused after temporary access road service?

Yes. Geocell panels can be excavated, cleaned of aggregate, collapsed for transport, and redeployed on subsequent projects. This removability satisfies regulatory requirements for site restoration in environmentally sensitive areas while recovering material value. HDPE construction maintains structural integrity through multiple deployment cycles over the product’s 75+ year lifespan.

What subgrade CBR is too weak for geocell road construction?

Geocell technology extends road construction capability to subgrades that conventional aggregate methods cannot economically stabilize. CBR values as low as 1-2 can support geocell road construction when combined with appropriate geotextile separation and maximum geocell depth (6-8 inches). For extremely weak soils (organic clays, saturated peats), additional measures such as geogrid reinforcement or working platforms may be required. Contact BaseCore engineering for site-specific evaluation.

How does geocell road construction compare in total installed cost to conventional aggregate base?

Total installed cost depends on aggregate haul distance, subgrade condition, and required load capacity. Geocell systems typically deliver cost savings when aggregate sources are remote (50+ mile haul) or when weak subgrades would require excessive conventional aggregate depth. The 40-60% aggregate reduction, compressed construction schedule, and reduced trucking costs frequently offset geocell material costs while providing superior long-term performance. Request a free project evaluation at basecore.co/quick-basecore-quote for site-specific cost comparison.
